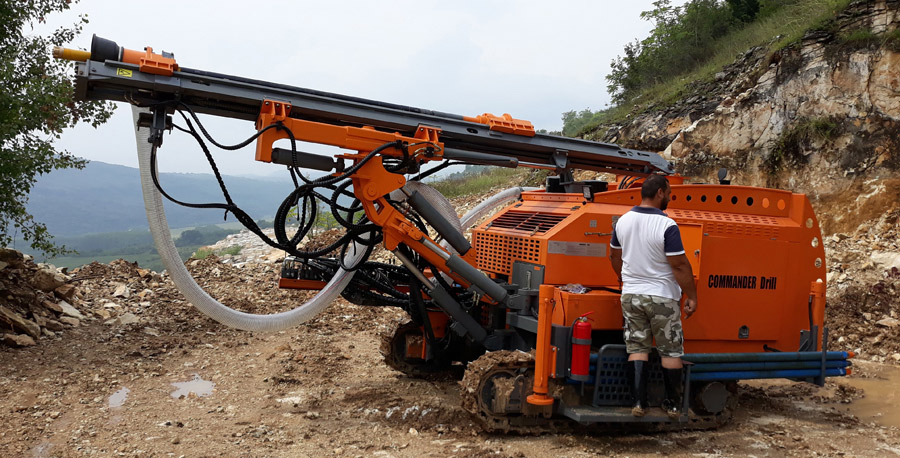

COMMANDER DRILL
COMMANDER drill is equipped with 14,5 bar compressor on board. Due to this compressor penetration rate in marble is 25-30 m/h. It drills vertical & horizontal holes for passing of diamond wire or blast hole drilling. Hole range 90-115 mm.

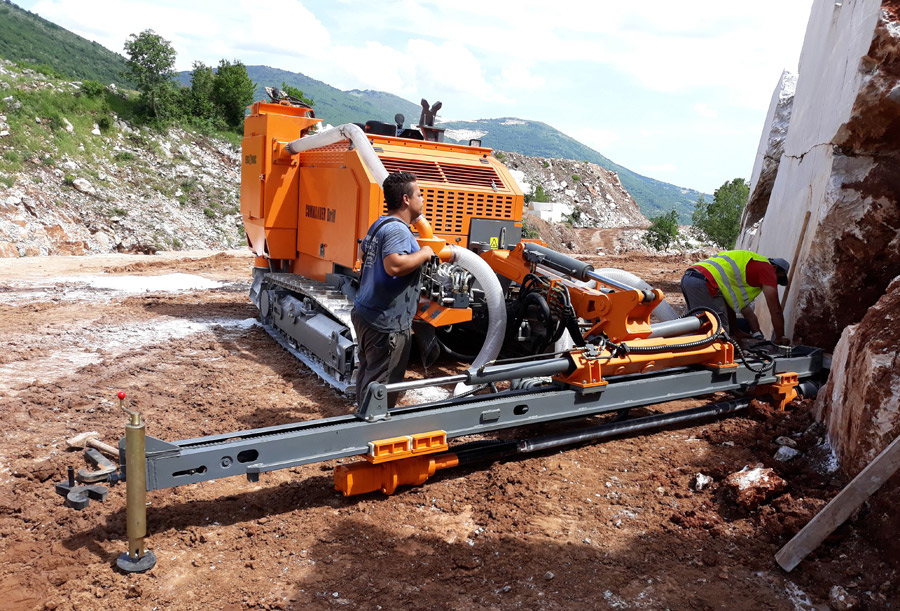

Horizontal holes at 5 cm from the ground
COMMANDER DRILL |
COMPRESSOR ON BOARD |
|
YES |
WORKING PRESSURE |
Bar |
14,5 |
FREE AIR DELIVERY |
m3/min |
10 |
HOLE RANGE |
mm |
90-115 |
DRILLING DEPTH |
m |
40 |
ROD DIAMETER |
mm |
76 |
ROD LENGTH |
mm |
3000 |
ENGINE |
Brand
Kw |
Cummins / Deutz
142 |
HYDRAULIC SYSTEM |
Brand |
CASAPPA |
ROTATION SPEED |
Rpm |
0-85 |
ROTATION TORQUE |
Nm |
1650 |
FEED FORCE |
KN |
15 |
PULL UP FORCE |
KN |
26 |
WEIGHT |
Kg |
7000 |
DUST COLLECTOR |
|
STANDARD |
SHIPPING DIMENSIONS |
(LXWXH) mm |
6050X2560X2720 |
