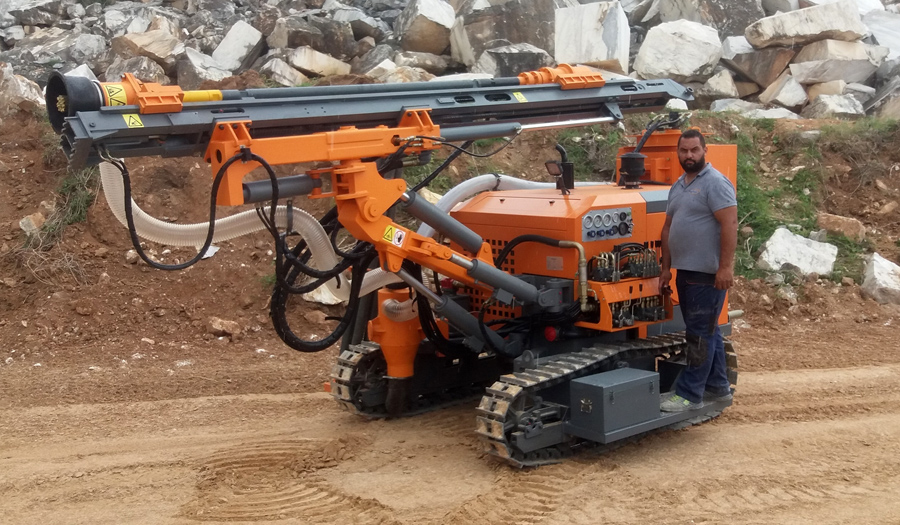

MARMODRILL
MARMODRILL works with separate compressor. It drills vertical & horizontal holes for passing of diamond wire or blast hole drilling.
Net penetration rate in marble 15-30 m/h depending on the pressure of the compressor that is used.
Hole range 90-115 mm.
It can also perform conventional (T2-101) core drilling to a depth of more than 40-50 m.

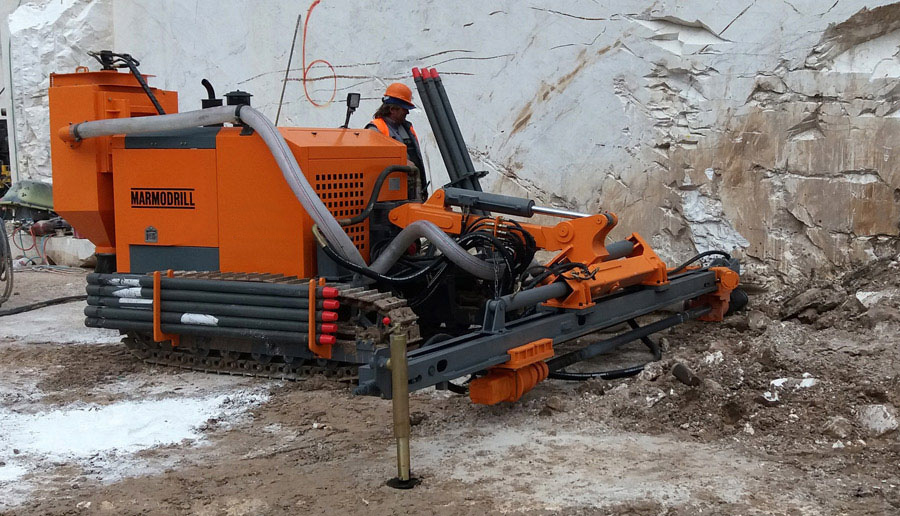

Horizontal holes at 5 cm from the ground
MARMODRILL |
DTH |
CORING T2-101 |
WORKING PRESSURE |
Bar |
7-20 |
Water flushing |
HOLE RANGE |
mm |
90-115 |
101
(Sample 83,7) |
DRILLING DEPTH |
m |
40 |
40-50 |
ROD DIAMETER |
mm |
76 |
50-60-76 |
ROD LENGTH |
mm |
2000 / 3000 |
ENGINE |
Brand
Kw |
Cummins
60 |
HYDRAULIC SYSTEM |
Brand |
CASAPPA |
ROTATION SPEED |
Rpm |
0-85 |
0-500 |
ROTATION TORQUE |
Nm |
1650 |
270 |
FEED FORCE |
KN |
15 |
PULL UP FORCE |
KN |
26 |
WEIGHT |
Kg |
3500 |
DUST COLLECTOR |
|
STANDARD |
N/A |
SHIPPING DIMENSIONS |
(LXWXH) mm |
4650X2150X2260 |
