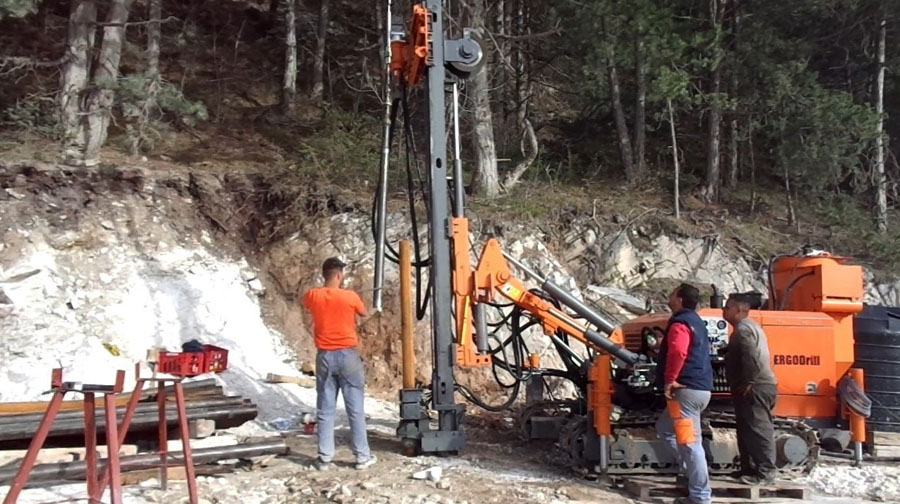

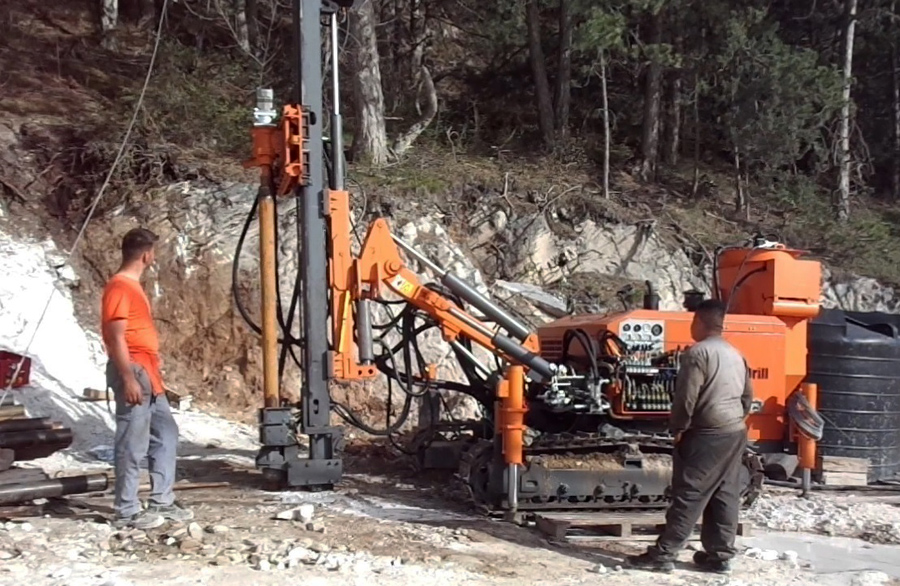

ERGODRILL
ERGODRILL is able to perform vertical or horizontal core drilling (conventional & wire-line) at a depth more than 100 m. Also DTH drilling for passage of diamond wire or blast hole drilling.
ERGODRILL |
CORING |
DTH |
T2-101 |
WIRE-LINE
PQ |
WORKING PRESSURE |
Bar |
Water flushing |
7-20 |
HOLE RANGE |
mm |
101
(Sample 83,7) |
122,6
(Sample 85) |
90-115 |
DRILLING DEPTH |
m |
> 100 |
ROD DIAMETER |
mm |
50-60-76 |
117,5 |
76 |
ROD LENGTH |
mm |
3000 |
ENGINE |
Brand
Kw |
Cummins
60 |
HYDRAULIC SYSTEM |
Brand |
CASAPPA |
ROTATION SPEED |
Rpm |
0-600 |
0-85 |
ROTATION TORQUE |
Nm |
450 |
1650 |
FEED FORCE |
KN |
15 |
PULL UP FORCE |
KN |
60 |
WEIGHT |
Kg |
5500 |
DUST COLLECTOR |
|
N/A |
STANDARD |
SHIPPING DIMENSIONS |
(LXWXH) mm |
5940 X 2150 X 2420 |
